ODM 1.27mm Pitch Metal Casing Precision Twist Pins J30J Series Micro Rectangular Electrical Connectors

Brand Name : ZSX

Model Number : J30J-37ZKP-A

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Depending on the quantity

Payment Terms : T/T,D/P,Western Union

Supply Ability : 100000Pcs/Year

Delivery Time : 5-8 Days

Packaging Details : Carton packaging

Name : Rectangular Electrical Connectors

Gender : Female

Boday Material : Metal

Insulator material : PPS

Working temperature : -55℃~+125℃

Specification : 9~144 pins

Contact Now

ODM Rectangular Electrical Connectors 1.27mm 31 Pin Connectors 3A J30J-37ZKP-A

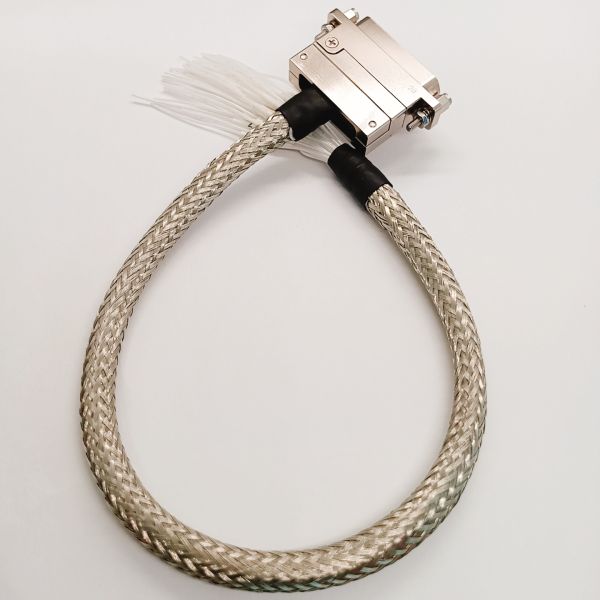

Micro Rectangular Connectors 37 Pins J30J-37ZKP-A With Shielding Braid Cable Clipper

J30J series of micro rectangular electrical connectors comply with GJB2446A (equivalent to MIL-DTL-83513), corresponding to the American MDM series products. They adopt precision twisted wire elastic pins (precision twist pins), with a contact piece spacing of 1.27mm. The product is compact in size. The casing is made of metal and comes in 12 specifications ranging from 9 to 144 pins. The insulator material adopts PPS to meet the requirements of high-temperature resistance and aerospace applications. Plugs and sockets can be threaded locked, guided, and prevent misinsertion. The termination forms include crimping, direct insertion, bending insertion, and welding. Among them, the cross-sectional area of the crimped wire is 0.1mm² to 0.15mm², which is suitable for the interconnection of various electronic and electrical systems with high density, miniaturization, lightweight, and high reliability requirements.

Product Performance Details

Product Model	J30J-37ZKP-A	Contact Resistance	≤10mΩ
Ambient Temperature	-55℃~+125℃	Insulation Resistance	≥5000MΩ
Vibration	10Hz~2000Hz 196m/s²	Medium Pressure Resistance	800V
Random Vibration	Power spectral density is 0.4G²/Hz and the root mean square value of the total acceleration rate is 23.1G	Mechanical Life	500 times
Impact	735m/s² 11ms	Rated Current	3 A

Product Display

ODM 1.27mm Pitch Metal Casing Precision Twist Pins J30J Series Micro Rectangular Electrical Connectors

Related Product Recommendations

Product Selection Reference

Shell Size

Appearance Diagram After Matching

Company Facilities

Office Area

Production Plant Area

Machining Production Workshop

Precision Assembly Production Workshop

Glass-to-Metal Sealed Production Workshop

Obtained Certification

Customer Visits

Product Packaging

Packaging and Shipping

Standard export carton
Customized specifications such as logo or others according to customers' requirements
Delivery time: Within 24 hours for stocks, 3-4 weeks for mass production orders (based on different quantities, ODM, etc.)

Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.

Q: What are the main products of your company?

A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 pieces.

Q: Which logistics company does your company ship through?

A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q: What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).

Q: How long is your warranty?

A: The warranty period is three months.
